Bottle Water Filling Production Line

Manufacturer and exporter of bottle water filling line for sale, we provide filling solutions for customers and satisfy their needs for water filling. ...Read more



This 5gallon barreled drinking water filling line is for filling mineral water, distilled water and purified water into barreled/bucket/jar. The water filling line is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The barreled water filling machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Principal characters:

1)Adopting turn-over type transmission structure (with the bung downward), the inner barrel is washed by disinfectants, clear water, sterile water.
2)All the parts contacting the water and other liquid of this water filling machinery is made of stainless steel, whose surface is polished, easy to clean.
3)The open able windows in front and back wall make it convenient for operator to watch, examine, fix and clean.
4)Special design of spray head makes the spraying well-distributed, good for cleaning with kinds of cleansing liquid.
5)Adopting pressure filling, it fills quickly and the liquid level is steadily controlled. All the sealing elements are kept with food sanitation standard.
6)The capper adopts pressing type of capping, high production capacity and no damage to caps.
7)The whole automatic bottle water filling lines adopts PLC and frequency control, working stably and easy for operation.


Model YGF-100 YGF-300 YGF-450 YGF-600 YGF-900 YGF-1200 YGF-2000

Number of filling heads

1 2 3 4 8 12 16

Filling capacity

18.9L 18.9L 18.9L 18.9L 18.9L 18.9L 18.9L

Barrel size (mm)

φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490

Production capacity (b/n)

100-120 200-240 300-400 600 900 1200 2000

Gas pressure (Mpa)

0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6

Gas consumption (m3/min)

0.37 0.6 0.6 1.2 2.2 3 4.5

Motor power(kw)

1.75 3.22 4.8 8.5 8.5 8.5 8.5

Rated voltage (V)

380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz

Overall dimension (mm)

3790×650 ×1550 3550×800 ×1800
2800×1100 ×1800
3550×1200 ×1800
3800×1100 ×1800
3650×1500 ×1800
3800×1100 ×1800
2200×1860 ×2700
not include cleaning
2560×2350 ×2750
not include cleaning
3100×2800 ×2750
not include cleaning

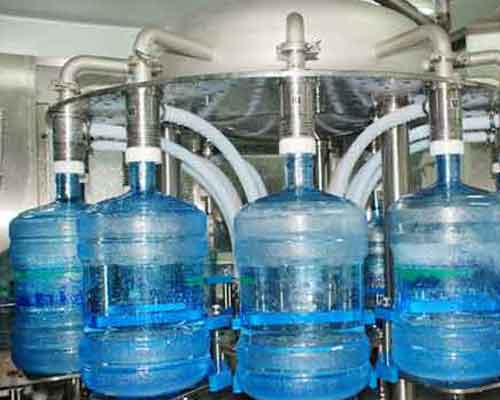

automatic bottle water filling lines for sale

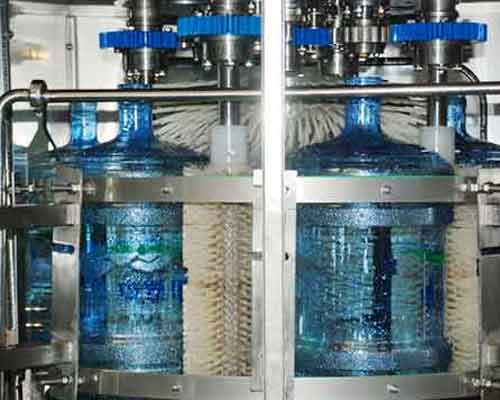

automatic bottle water filling lines manufacturers

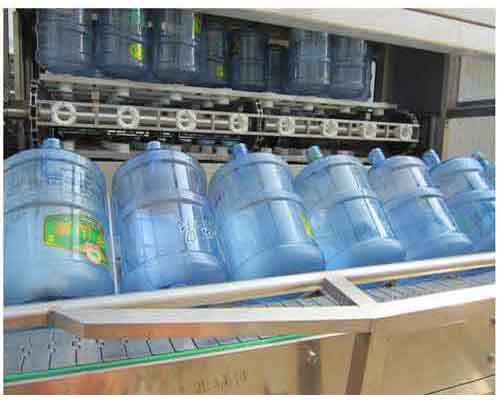

used bottle water filling production lines
