Automatic Vertical Form Fill Seal Sugar Packing Machine

Product Description

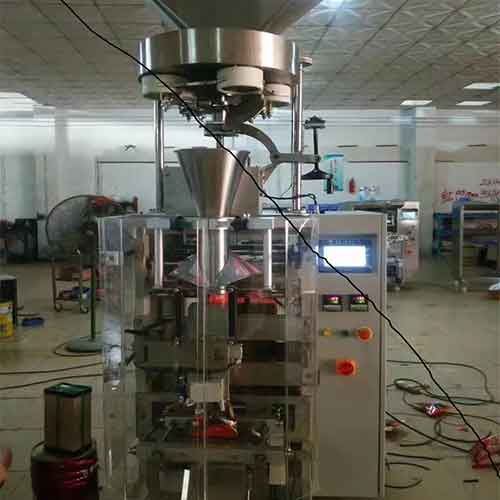

Vertical Sugar Packing Machine

Use:

This machine is an automatic vertical bagger for granular products,such as Sugar,rice,salt,beans,seeds,corn,and other similar prodcuts.

Features:

1. Servo-motor driven, twin belt film pulling system,ensure machine to drive film stable.
2. Automatic film tracking system,to make sure every bag with same length and width.
3. PLC control system with touch screen operation,friendly to user and easy to operate.
4. PID heat temperature controller, tolerance within ±1ºC,to make every bag under good sealing.
5. Tool-free mould changeover,help user to save time for production.
6. Volumetric cup system,perfect for calculating the weight of granular products.
7.Date code device,to print date number on bags.


Specification:

• Speed       15-70 bags/min
• Bag size Range         (L)80-300mm (W)80-200mm
• Weight Range  100-1000g
• Packing Material      Lamination film,PE,Aluminum,Paper       Lamination film,PE,Aluminum,Paper       Lamination film,PE,Aluminum,Paper
• Film Width        180-420mm
• Air Consumption      0.36m3/min,0.6MPA
• Power       220V/380V,50/60Hz, 3.5KW
• Machine Weight       450kgs
