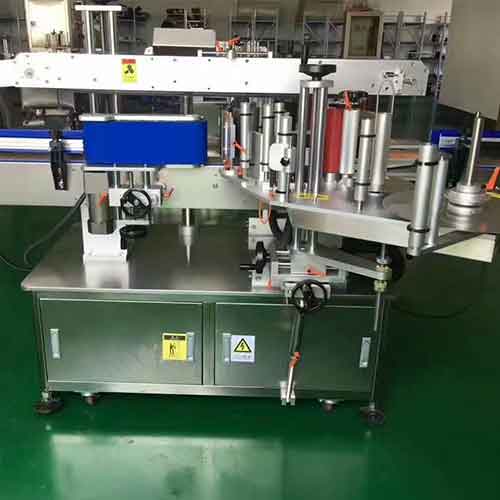

Automatic Sticker Labeling Machine for Round / Square / Flat Bottle with Reasonable Rate
1 The best combination of speed, accuracy, satability and easy optimization and flexibility.
2 Splitting mechanism: to ensure the production line online use is reliable and effective.
3 The unique label stroking mechanism is to ensure the smoothness of the label in three side corner which is also sloving the exsiting problem in the edible oil industry labeling.
2 How to solve the probem when a production line is with different kinds of packing forms
3 The oil bottle is easy to slip on the belt
4 How to ensure the material division and stability of the corner labeling when the material is stacking.
Product Description
Characteristics of the bottle labeling machine1 The best combination of speed, accuracy, satability and easy optimization and flexibility.
2 Splitting mechanism: to ensure the production line online use is reliable and effective.
3 The unique label stroking mechanism is to ensure the smoothness of the label in three side corner which is also sloving the exsiting problem in the edible oil industry labeling.
Technical Difficulities
1 How to ensure the the corner label not to wrinkle2 How to solve the probem when a production line is with different kinds of packing forms
3 The oil bottle is easy to slip on the belt
4 How to ensure the material division and stability of the corner labeling when the material is stacking.
Main technical parameter:
- Drive :Servo motor driven
- Direction:Right/Left
- Labeling Speed:30-50 pcs/min (subject to the size of the bottle and the label)
- Label Size: W: 15~90mm L: 15~200mm
- Label roll:Max: dia350mm
- Label core:Stander: dia76mm
- Precision:+1mm (subject to roundness and verticality of the bottle)
- Conveyer belt Speed:3~25m/min
- Delivering label Speed:3~40m/min
- Bottle Diameter:Dia25~100mm
- Power:L/N/PE 220V 50Hz 1800W
- Temperature:0~50℃
- Dampness:15-90%
