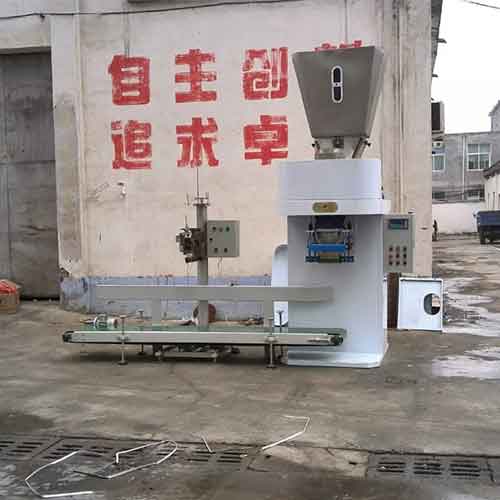

Anti corrosive semi automatic industrial salt powder packing machine

Application

Anti corrosive semi automatic industrial salt powder packing machine This machine is especially designed for packing bagging machine for ammonium nitrate prills into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.

• Application:Chemical, Food, Machinery & Hardware, Medical
• Packaging Type:Bags, Cartons, Stand-up Pouch
• Packaging Material:Wood
• Automatic Grade:Semi-Automatic
• Driven Type:Electric
• Place of Origin:zhengzhou, China (Mainland)
• Brand Name:union machinery
• Model Number:DCS-25
• Weighing Range:5-25kg,
• Precisions:±0.2%FS
• Packing Capacity: 150-200bag/hour
• Power supply :220V/380V, 50HZ, 1P/3P ( Customized)
• Power (KW): 3.2
• Dimension (LxWxH)mm 3000x1050x2800
• Weight:350kg
• Packaging Details:industrial salt powder packing machine PLYWOOD BOX
• Delivery Detail:25 days

 Working Principle

First, the bag need be applied manually to the filling spout and the filling process is started by a push-button.Your material will firstly go to the hopper and then be filled into the bags via the feeding parts. The filling flow is controlled by the frequency-change rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.

Working Process

Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process

 And the Optional device:

Dust removal device. The working environment will be more hygienic if the dust removal device is added.
