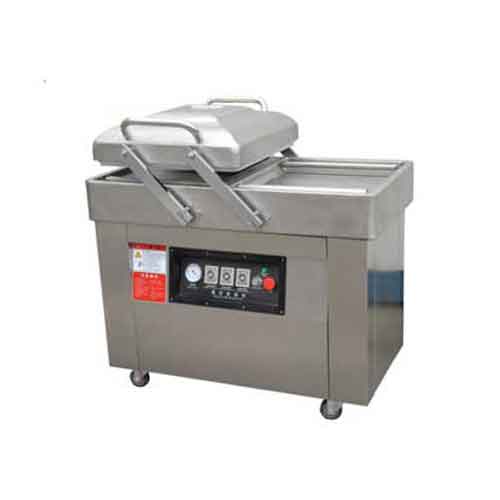

Double Chamber Vacuum packing Machine DZY260T

Double vacuum packaging machine can complete the set programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically....Read more

VIDEO

Introduction

DZY260T vacuum packing machines for food is a double chamber stainless steel vacuum machine which is ideal for sealing vacuum pouches used in the pharmaceutical, food, condiment or electronic industries etc. It protects the product from oxidation, spoilage and corrosion so as to prolong the storage period. The unit does not need an external compressor for operation. The sealer is equipped with a digital control panel for setting temperature, sealing time and cooling time. Close the lid to start the cycle that follow the setting and the lid will automatically open when cycle is completed. Vacuum time ranges from 15-30 seconds.

Application:

Double chamber vacuum package machines for food is also suitable for the vacuum package of products such as soy sauce products, meat products, condiments, preserved fruits and the products made from beans in food industry, chemical products, granule medicines and electronic elements etc.

Packing effect:

Vegetable vacuum packing machine

 Features:

1. The vacuum packaging machine adopts the stainless steel as the main body, creating the exquisite appearance and long service life.
2. Double chamber, it is more efficient to do the vacuum package.
3. High capacity vacuum pump, it is easy to operate and is of safety control.
4. Equipping the model of gas flushing is available.
5. Lock-down wheel being installed, it is easy to move the machine.
6. Low noise, energy saving, the machine will gives you a quiet working environment.

Technical parameters:

Model DZY260T
Shell(material) Stainless steel
Chamber size(mm) 420x435x70
Voltage(v/hz) 220/50 110/60
Power(kw) 0.75
No. of sealing bars for each chamber 2
Sealing length(mm) 400
Sealing width(mm) 10
Max sealing thickness(mm) 0.1-0.5
Vacuum pump rate(m3/h) 20
Sealing time range 10-20 seconds
Machine dimension(mm) 540x490x950
Net weight(kg) 100

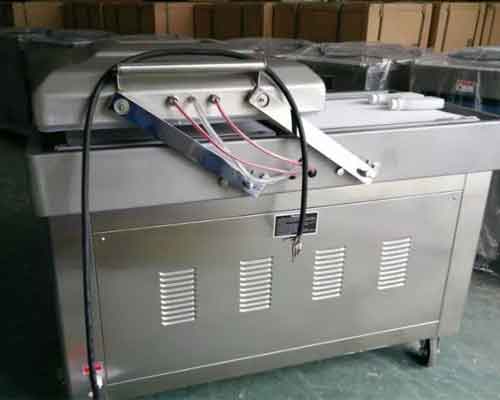

Double Chamber Vacuum packing Machine manufacturers

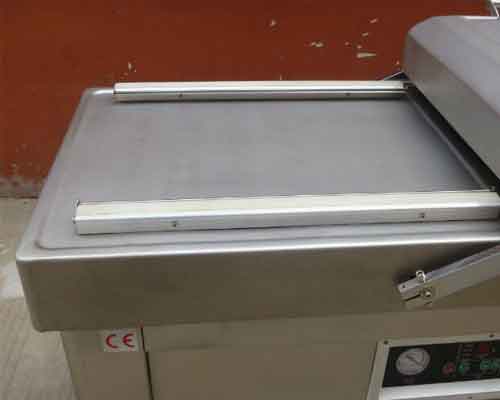

Vacuum packing Machine detail
Rice vacuum packaging machine
