Superfine Pulverizer

VIDEO

Introduction

Pulverizer machine is composed of main motor, auxiliary motor and electrical control cabinet. The advantages are reasonable structure and compact design. The pulverizer machine for powder with no sieve and mesh, make sure the material epigranular after grinding. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for grinding thermo sensitivity material.

Application:

This pulverizer grinding machine is widely used in pharmaceutical, chemical and food industry. Such as traditional Chinese medicine, Corn, rice, chili, pepper, naked oats, beans, garlic, star anise, cinnamon, Dehydrated vegetables, hawthorn, dried ginger, garlic, white sugar. Saccharin. Grains, dried small shrimps, pumpkin powder, condiment, mushroom, etc.

Working theory:

Raw material is delivered to the grinding chamber via hopper by spiral feeder, it is cut and sheared by the high speed cutters, and then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag. There is no dust flying during production.

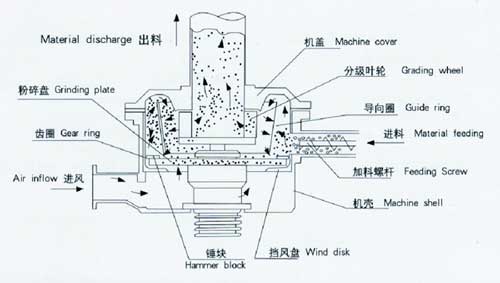

Work illustrative diagram:

Superfine Pulverizer Work illustrative diagram

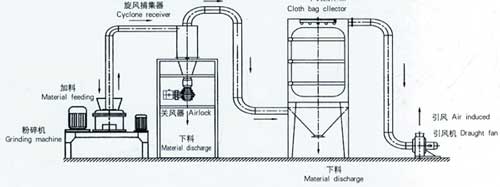

Work flow:

Superfine Pulverizer Work flow

Specification:
