As the Semi-Automatic Sauce Packing Machine is working without the electricity, it is very safe and the personal design better meets the demands of modern enterprises....Read more

VIDEO

Introduction

Paste filling machine is the automatic filling system using compressed air as power, which is composed of precision pneumatic components. The paste filling machine has the features of simple structure, reliable and convenient adjustment.
This paste filling machinery also adapts to all kinds of paste, viscous paste filling. It can work in the inflammable and explosive environment. It is the ideal filling equipment of pharmaceutical, chemical, food, cosmetics and other industries.

Application:

Applicable to the pharmaceutical chemical, food and special industries, is ideal for high viscosity fluid filling equipment.
(1) Cream, paste Products
In cosmetic industry: face cream, body cream, washing cream, vaseline etc
In food industry: honey, sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
In chemical industry: welding paste, ink, paint, pigment etc.
(2) Liquid products
Shampoo, lotion, liquid soap, detergent, juice, solution etc.
(3) Make-up products
Lipstick, lip gloss, nail polish, mascara etc.
(4) Adhesive products
Instant glue, AB glue, silica gel, anaerobic adhesive, silicon, sealing etc
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine etc.

Features:


The paste packing machine adopt pneumatic components in generally, pneumatic and electrical drive one, simple operation, high filling precision;
Using 304 stainless steel construction of the material contact parts, optional 304 or 316 stainless steel;
Stainless steel valve system design;
Filling volume, filling speed can be adjustable
Extremely easy to clean and maintain;
Quick release nozzle and feed pipe;
Optional type for semi-automatic paste filling machinery are 5-50ml 10-125ml 20-250ml 30-300ml 50-500ml 100-1000ml 500-2600ml 1000-5000ml;

Technical parameters:

Model YY-50G YY -125G YY -250G YY -500G YY -1000G YY -3000G YY -5000G
Type Pneumatic
Automaticity Semi-automatic
Air Pressure 0.4-0.6MPa
Filling Range 5-50ml 10-125ml 20-250ml 50-500ml 100-1000ml 300-3000ml 500-5000ml
Filling Speed 10-35n/min(take water for example)
Size(mm) 850*230*250 850*230*250 880*230*250 950*280*300 1050*280*300 1095*280*358 1250*280*368
Net weight 16kg 18kg 20kg 26.8kg 31kg 36kg 38kg
Note You can choose a suitable model according to your product and filling range. We will equip a hopper or a tube for the machine accordingly. The hopper has to be paid in addition.

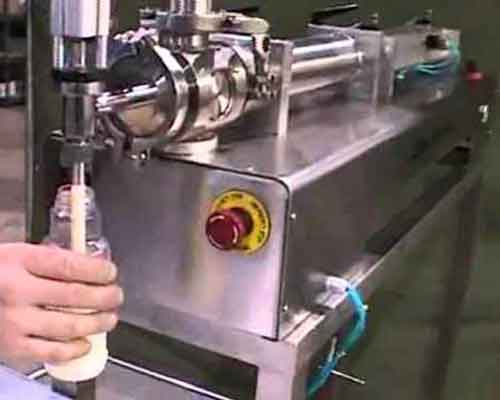

paste filing machine detail

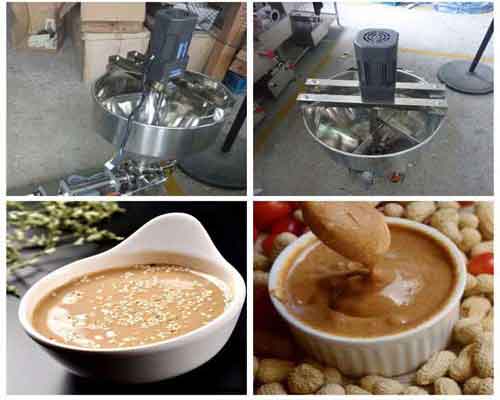

paste packing machines manufacturers
paste packing machine packing results
