Hand impulse sealer for any thermoplastic material such as polyethylene (PE) or polypropylene (PP) which requires a lower seal temperature and immediately by cooling after sealing....Read more

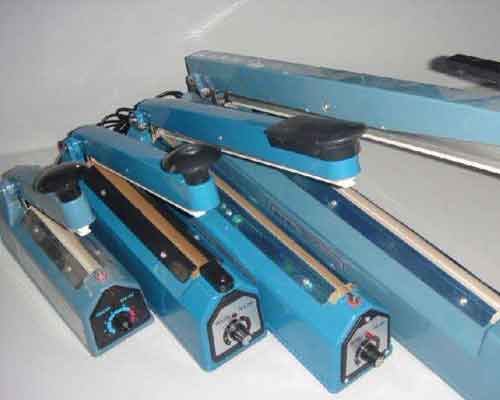

Introduction:
YY-SF series hand sealer for sealing all plastic films, laminated films and aluminum film. There are three machine casing: plastic, iron, aluminum. This hand impulse sealing machine can heat seal while printing the date, C-type machine with a cutter.Application:
Hand impulse sealer is widely used in sealing food, candy, souvenirs, tea, medicine, hardware, etc.Features:
1. Portable, easy to operate2. Sealing time is short
3. This extra long impulse sealer enables the user to seal heavier packages without having to lift them to accomplish sealing.
4. Comes equipped with round element wire is used for sealing trimming.
5. The perfect sealer for PE and PP bags to package various kinds of candy, foodstuff, general merchandisers, stationery, drugs, etc.
Operation:
Simply place a bag between the sealing bars, press down and release.- Place a plastic bag between sealing bars;
- Set timer controller to appropriate sealing time;
- Press down the sealing bar till indicate light goes out;
- Release sealing bar and take away sealed bag;
- Adjust timer controller in according with plastic film type and thickness to ensure neat and strong sealing effect.
Specification:
| Model | YY-SF100 | YY-SF200 | YY-SF300 | YY-SF400 | YY-SF500 | ||
| Voltage(V/Hz) | AC 220/50 110/60 | ||||||
| Power | 150 W | 300 W | 460 W | 500 W | 600 W | ||
| Sealing length | 100 mm | 200 mm | 300 mm | 400 mm | 500 mm | ||
| Sealing width | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | ||
| Max seal thickness | 0.2 mm | 0.2 mm | 0.3 mm | 03 mm | 0.3 mm | ||
| Heat time | 0.2-1.3s | ||||||
| Machine size | 230*72*170 mm | 325*75*225 mm | 440*83*255 mm | 540*85*280 mm | 550*85*280 mm | ||
| Weight | 1.8kg | 2.5 kg | 3.7 kg | 4.7 kg | 5.8 kg | ||
