Introduction

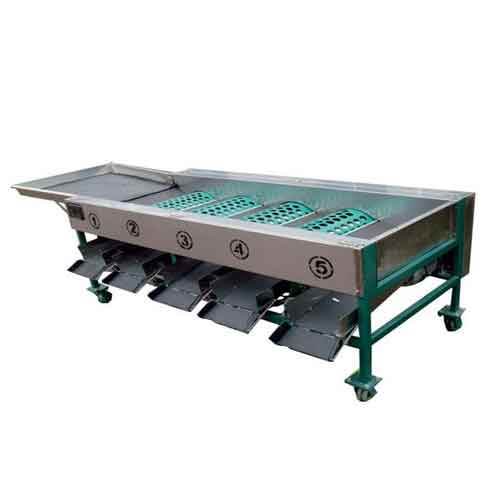

This automatic fruit and vegetable size sorting machine is used to sort and grade fruit and vegetables by size such as apple, pear, orange, mango, onion, tomato, potato, etc.
This fruit size sorting machines is the first design of the automatic fruit sorting machine in China, which can feed the fruits to the machine automatically, which greatly saves the labor cost and time.
The automatic fruit size sorting machine can sort efficiently and grades of sorting are adjustable.

Features:

1. The fruit size grading system is used for round, circular oval or nearly round shape fruits such as citrus, peaches, cherry tomatoes , lemon etc and vegetables such as tomatoes, onions etc.
2. The fruit and vegetable size grading equipment developed Gunpa type grader can handle fruit with leaves.
3. 56 percent accuracy rate increased than traditional fruit and vegetable size grading machines.
4. According to your work, from slow to fast to adjust is available, improve work efficiency.
5. Grading size stable, standard, working fast high efficiency., it is the most suitable for fruit and vegetable size sorting system.
6. Grading hole size as per custom made, 4-6 ranks, it satisfies needs of fruit and vegetable size sorting line.
7. Customize different types of classification levels according to customer requirements.
8. This machine adopts stainless steel structure, beautiful and durable.
9. Voltage 380/220, different specifications can be customized according to customer different environments.

Technical Parameters:

Model YY-SN
Feeding way Manual
Grading speed 1-5000kg/h
Grading ranks 6
Grading range 20g-1500g
Grading error ±3g
Grading way Size/diameter grading
Power 1.5kw
Voltage 380v
Dimension 1.3*4*1m
Weight 400kg

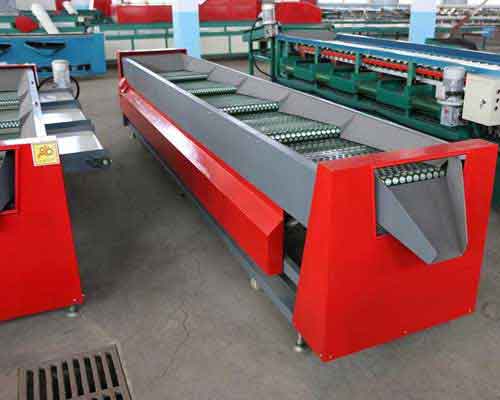

fruit-size grading system manufacturers

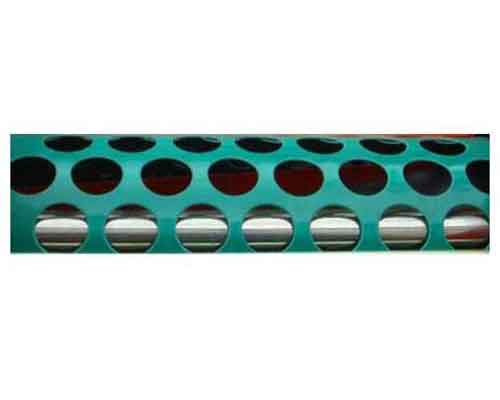

fruit size grading system datil

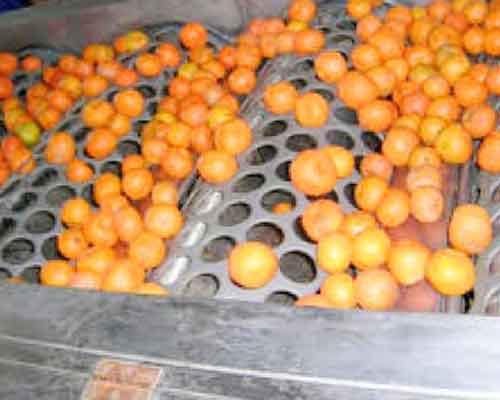

orange size sorting machine
