This inner and outer teabag packing machine with string and tag is controlled by PLC, the process of bag making, measuring, filling, sealing, cutting and counting can be done automatically. ...Read more

VIDEO

Introduction

this inner and outer teabag packing machine may late will stock pack enter bag, again in bags enter outside bag, realize internal and external bag at the same time pack, bag divide into 3 sides assign bag type, may use filter soft paper or other may hot material; outside bag assign bag for 3 sides type, have two free degrees lateral rectify a deviation install and the longitudinal intelligent photoelectric location of trade mark systematic, continuous trade mark and the location free switch of trade mark. This tea bag package machine can make bag voluntarily consummately, measure, serve as fill, divide cut, seal join and hit yard, count (and may forward selection count) the output of finished product. Raise product appearance class, make product value promote.

Features:

  • One-time packing of the inner and outer bag, avoiding hands directly contacting with stuff materials, improving the efficiency.
  • The inner bag is made of filter cotton paper, which can be automatically packed with thread and label. The outer bag is composite paper, the advantages of this tea bag packing machines are photoelectric location for the bag and outer bag, adjustment to the need of the content, length of inner bag and outer bag, and tag, the dimension of inner and outer bag can be adjusted according to the need that to achieve the perfect shape, to upgrade the appearance for the product, then add the value of it.
  • Photoelectric location for the tag and outer bag, adjustment to the length of inner bag and outer bag.
  • The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.

Pack Material:

Paper/plastic, plastic/plastic /aluminum/plastic. Paper /aluminum /plastic,  tea paper.

Application:

This teabag filling machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea, herbal tea and healthy teas.

Technique parameter:

Type YY-T3C
Bag size Inside:L: 50-75mm
      W: 55-75mm
Outside: L: 75-95mm
        W: 85-120mm
(both inner bag and outer bag, inner bag with thread & tag )
Lengh of cotton thread 150-210mm
Tag Dimension (L):20-24mm; (W):40-55mm
Packing type Three sides sealing
Packing material inside:Filter paper. Outside: hot-sealed complex film.
Packing speed 30-60 Bags/min
Measuring range 1-15ml
power 220V, 50HZ, 3.5KW
weight 650KG
Package size 1050*750*1300mm

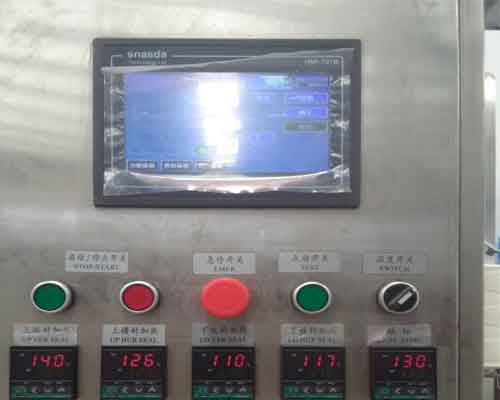

teabag packing machine console

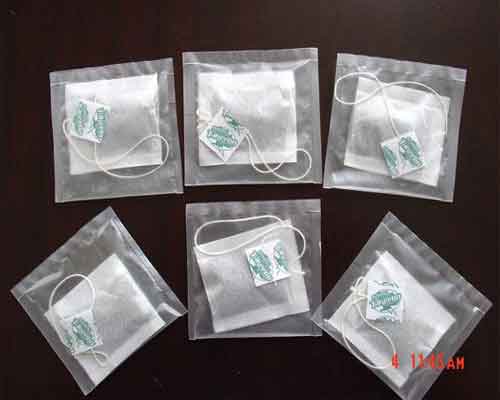

teabag packing effect
Inner and Outer Teabag Packing Machine with String and Tag Packing Machine
