This machine adopts servo indexing plate positioning system, packing speed and precision are improved, suitable for packagingmilk powder, glucose, protein powder, cocoa powder, coffee powder, solid beverage powder, superfine powder material....Read more

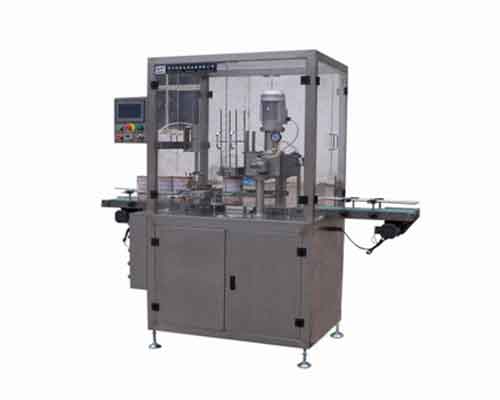

high precision two heads powder filling machine

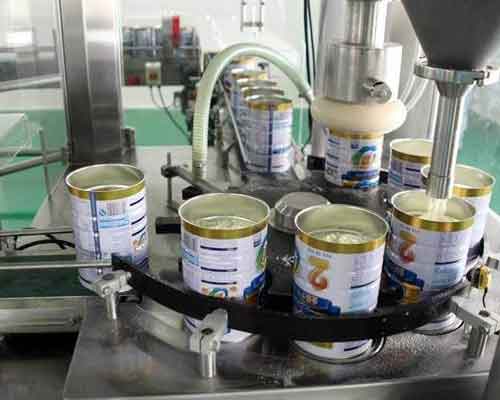

This machine is suitable for all kinds of powder, superfine powder or granular material filled into can, bottle etc. such as milk powder, Rice noodles, protein powder, cocoa powder, powdered drug, chicken powder, chicken powder, sugar, additives, dyes, spices etc.VIDEO
Introduction
features:
1. the whole machine is made of stainless steel, meet GMP standard and Food hygiene certification.2. LCD touch screen, easy to operate, Packing weight can be adjusted at any time, Working state can also be changed at any time, convenient operation.
3. Feeding use servo motor, with the feature of High precision, high speed, large torque, adjustable speed, good stability
4. Mixer use Maintenance free motor: Low noise, long life, maintenance free life
5. Online weighing feedback, According to the proportion of automatic material filling two times, Ensure high precision, high speed online filling.
6. Full sealed air resistance glass stainless steel, Dust does not leak, The filling outlet is equipped with dust collection device to protect the workshop environment.
7. Side open door hopper, Easy to clean without dead angle, easy to change the screw attachment.
specification:
- Measuring type: Screw weighing filling
- Size of hopper: diameter: φ50—180mm height: 50—350mm
- Weighing range: 10—2000g (change different screw)
- Precision: ±（0.5-2）g
- Filling speed: 0-35cans/min
- Voltage: 380v/50HZ three phase
- Power:3.5kw
- gas consumption: 6--8kg/cm2 ，0.2m3/min
- machine weight: 1T
- machine size: 3330×1400×2400mm
- volume of hopper: 50L
