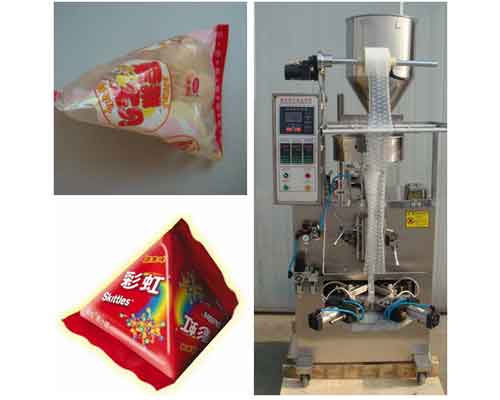

Triangle Bag Granule Packing Machine is suitable for the triangle bag solid packing of grain, short strip, such as slices puffed food, shrimp strip, peanut, popcorn, melon seeds, flavoring etc....Read more
VIDEO
Introduction
Application:
Triangle bag Automatic granule packing machine is suitable for the triangle bag packing of grains, short strips, slices solid material of food, medicine, chemical industry, such as bulgy food, shrimp strip, peanut, popcorn, oatmeal, melon seeds, white sugar, according to the customer’s requirement.The working process:
Automatic detection - automatic weigher - automatic filling - automatic bagging - automatic bag sealing - date printing - automatic cutting - Finished products convey.Machine features:
1. This triangle granule package machine can finish these works automatically: measuring--making bag--coding (option)--filling--gas injection (option)--sealing--counting.2. Computer/PLC control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.
3. This pyramid bag granule packing machine has fault display system, easy to operate and maintain.
4. Punching blade device is available.
5. Machine body has full of 304 stainless steel.
6. Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
Specification:
| Production capacity | 20-80 bags/min |
| Packing range | 1-100g |
| Making bag size | L: 50-150mm, W: 15-130mm |
| Accuracy | ≤±1% |
| Total Power | 1.6kw |
| Voltage | 220V/2.9kw |
| Machine weight | 300kg |
| Dimension | 1200*920*2000mm |

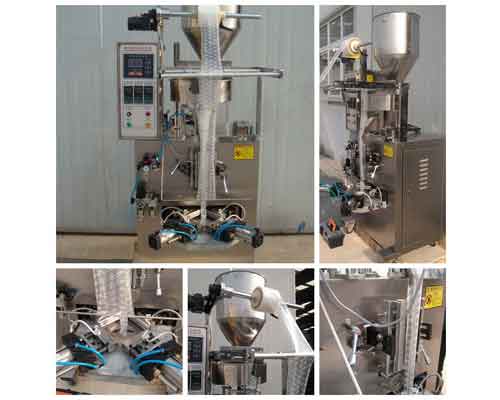

Machine Construction:
1. Film Frame
2. Mixed rang: Mixed rang consists of shaper, strut lever, rapper.
3. Upper sealing: Upper sealing consists of actuating cylinder, supporting, heater, more.
4. Traction: Traction consists of traction motor; Pull down wheel, photoelectric encoder, braced frame.
5. Lower sealing
Lower sealing parting consists of pushing cylinder rushing board, guide bar, heat sealing copper block, parting cut cylinder paring cut knife.
6. Metering filling
Metering filling Consisting of charging basket, buffeting dispense feeder, photo switch, upper charging tray, jigger, lower charging tray, charging bar, safety loop, clutch gear, actuating motor, transmission gear, message cam, proximity switch.
Packing step:
1. Fill products to the hopper
2. Film roll
3. Vertical seal device
4. Counting cup dispensing
Optional:
1. Conveyor2. Weighing scale
3. Hoister
4. Printer
5. Screw dispensing device
